Description
Providing the best quality range of Hammer Cutter Blades EFG suitable for EFGC, EFGCH, AGF Flail Mower.

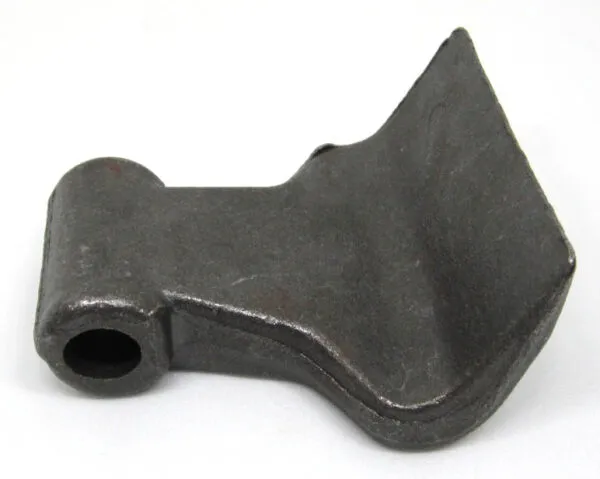

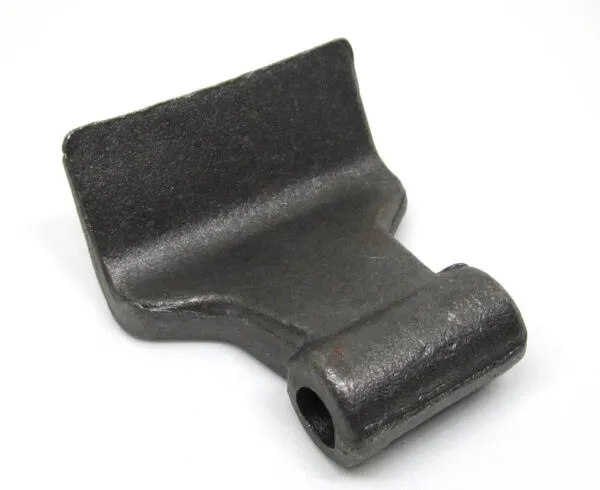

Hammer Blade EFG
Manufacturer: JCBL India Pvt Ltd
Country of origin: India
Description
Flail hammer blade is the blade that assembled to the flail mower using a bolt & nut, which is a type of agricultural equipment, such equipment is used to deal with heavier grass or scrub which cannot be removed by normal lawn mower.
Destination
Flail hammer blades are attached to the rotating horizontal drum and the rows of blades are usually staggered to offer a complete cut.
Heat Treatment of Flail Mover Blades
Hardening & Tempering is the most cost effective heat treatment method to improve the hardness of flail mower blades. An ideal hardness range of 45-50HRC can be achieved after heat treatment. Higher hardness will help to improve the wear resistance of flail mower blades, thus to longer the serving life.
Features
The paint coating is black.
| SPECIFICATIONS | |
| Weight | 0.400 Kgs |
| Drill Hole | 12.5 MM |
| Blade Width | 78 MM |
| Clamping Width | 44 MM |
| Radius | 82 MM |
| Material | Boron Steel |
| Process | Drop Forging |
| Quality Process | Hardening and Tempering |
| Finish | Self or Black Painted |
