U-Bolts

U-Bolts
U-Bolts - Image 2
U-Bolts - Image 3
U-Bolts - Image 4
U-Bolts - Image 5
U-Bolts - Image 6

U-Bolts

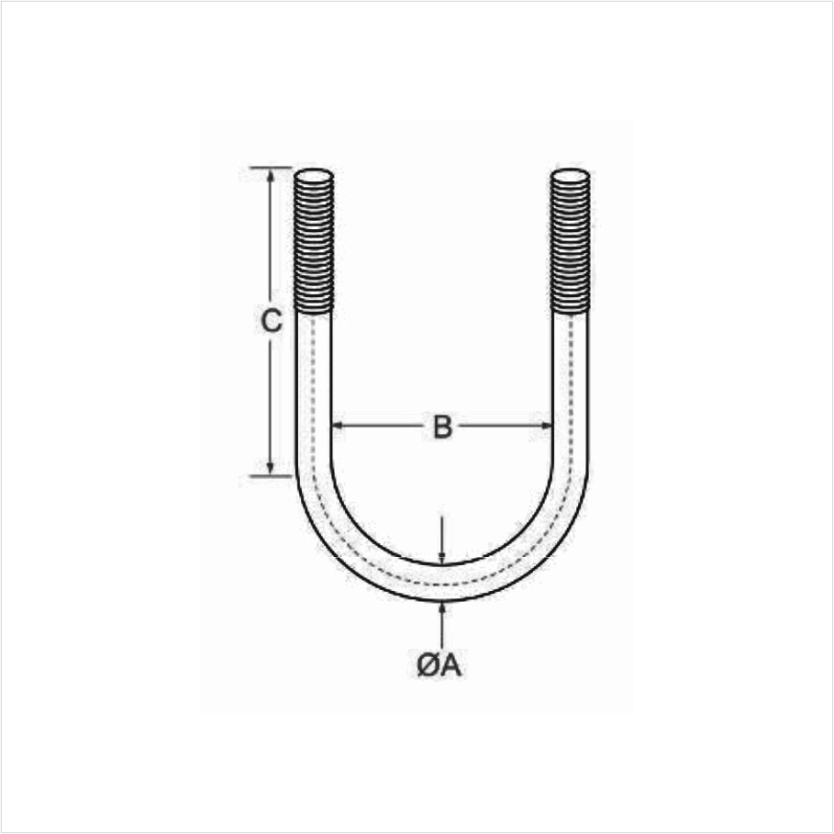

Code Dia ØA Dim. B Dim. C
JUB-01 7/16″ 2″ 6″
JUB-02 7/16″ 2-7/8″ 7-3/4″
JUB-03 7/16″ 3″ 7-1/2″
JUB-04 1/2″ 2-1/2″ 8-1/4″
JUB-05 1/2″ 2-7/8″ 7″
JUB-06 1/2″ 3″ 8″
JUB-07 9/16″ 3″ 8-1/4″
JUB-08 9/16″ 3-1/4″ 8″
JUB-09 9/16″ 3-3/8″ 12″
JUB-10 5/8″ 3″ 8-1/2″
JUB-11 5/8″ 3-1/4″ 8-1/4″
JUB-12 5/8″ 3-1/4″ 12″

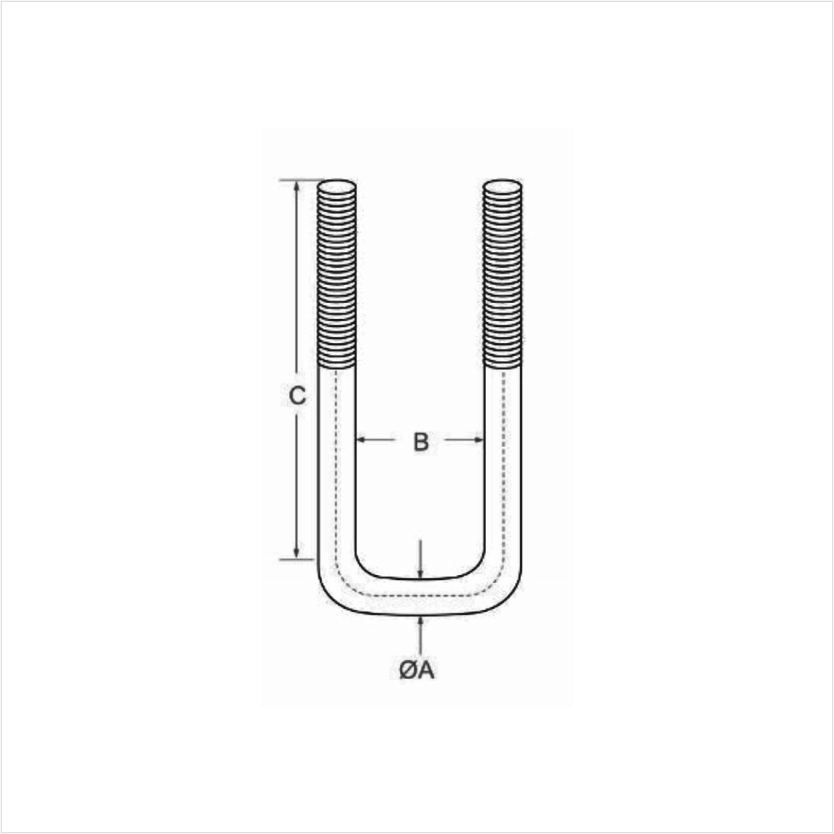

Code Dia ØA Dim. B Dim. C
JUB-21 3/8″ 2-1/2″ 2-1/2″
JUB-22 3/8″ 7″ 7″
JUB-23 1/2″ 3″ 4″
JUB-24 5/8″ 4″ 4″
JUB-25 5/8″ 4″ 5-1/2″
JUB-26 5/8″ 4″ 7-1/2″
JUB-27 5/8″ 5″ 8-1/2″
JUB-28 5/8″ 6″ 8″
JUB-29 5/8″ 7″ 5″
JUB-30 5/8″ 7″ 7″
JUB-31 5/8″ 7″ 8-1/2″
JUB-32 3/4″ 5″ 7″
JUB-33 3/4″ 7″ 8-1/2″
JUB-34 3/4″ 7″ 7″

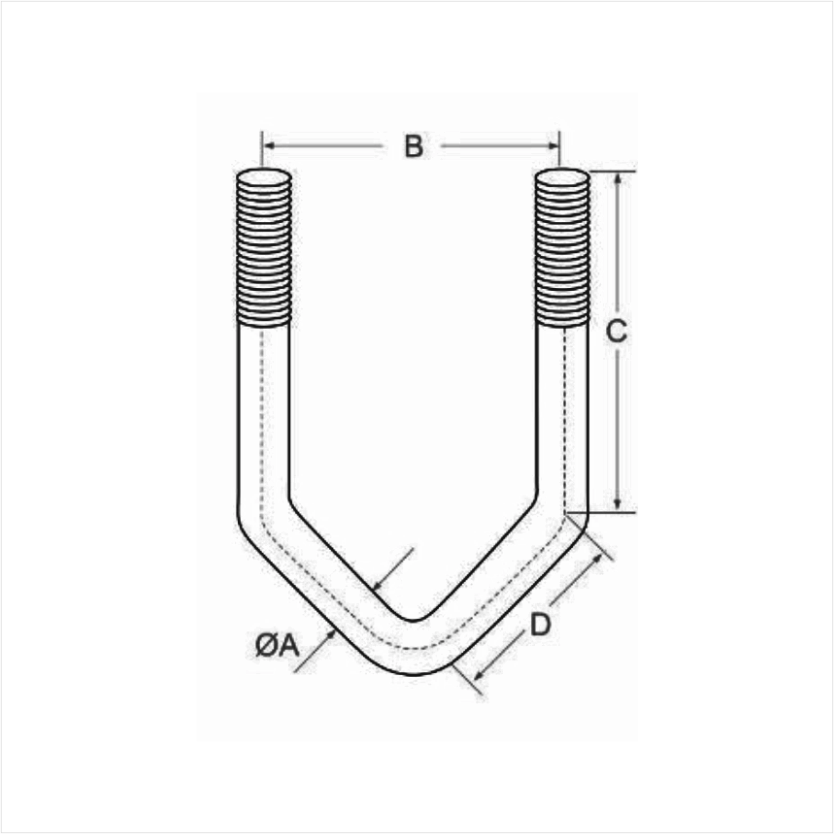

Code Dia ØA (mm) Dim. B (mm) Dim. C (mm) Dim. D (mm)
JUB-51 11 70 37 42
JUB-52 12.8 82 39 49
JUB-53 11 90 30 56
JUB-54 15 96 52 60.5

Material: Mild Steel, EN8, EN9
