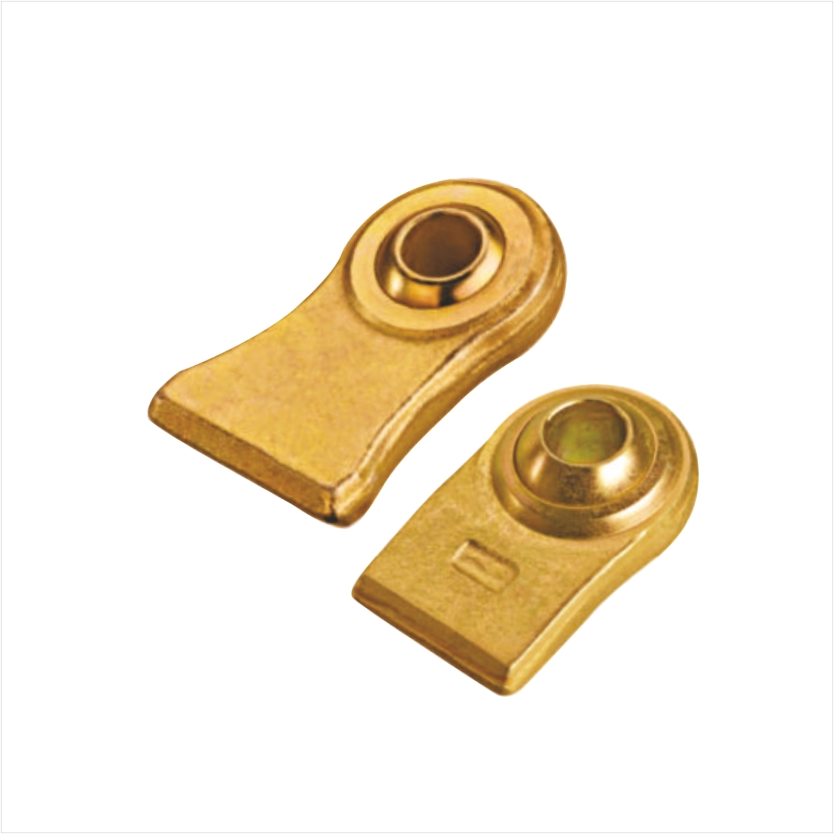

Weld On Ends

Weld On Ends - Image 2

Weld On Ends - Image 3

Weld On Ends - Image 4

Weld On Ends

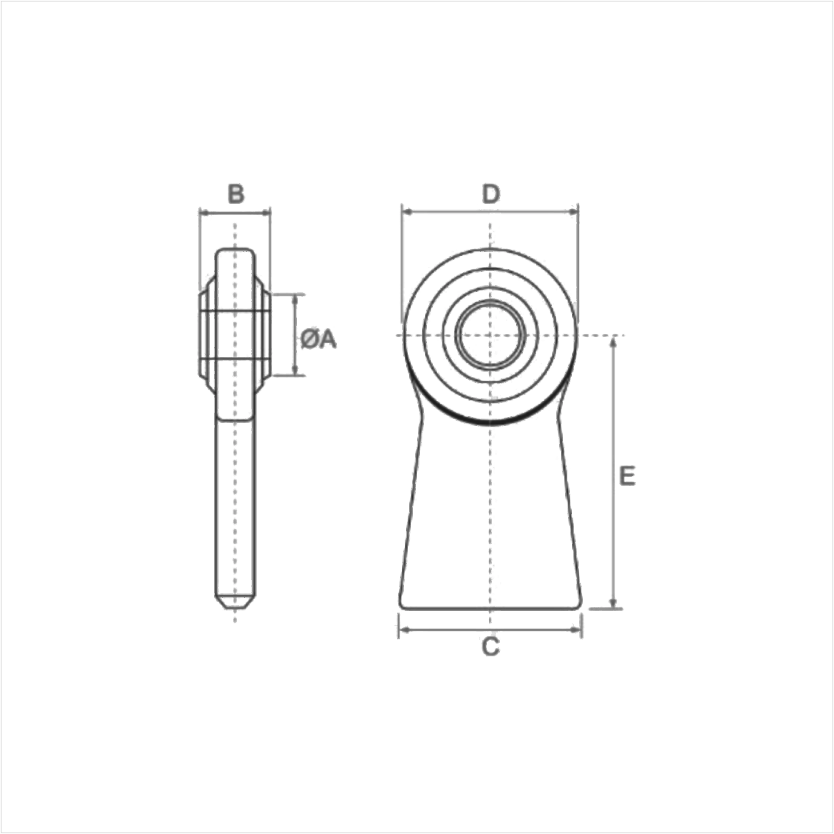

Code	A	B	C	D	E
JWOET01	19.2	44	25	53	48
JWOET02	20.2	44	25	53	48
JWOET03	19.2	44	25	53	48
JWOET04	19.2	44	26	55	65
JWOET05	19.2	44	30	62	34
JWOET06	20.3	44	30	62	34
JWOET07	22.1	44	30	62	34
JWOET08	19.2	44	34	62	60
JWOET09	22.1	44	34	62	60
JWOET10	20.1	44	34	62	60
JWOET11	19.2	44	30	62	50
JWOET12	20.1	44	30	62	50
JWOET13	22.1	44	34	62	58
JWOET14	19.2	44	34	62	58
JWOET15	19.2	35	26	62	55
JWOET16	22.1	35	26	62	55
JWOET17	19.2	51	38	75	65
JWOET18	25.2	51	38	75	65
JWOET19	30.2	51	38	75	65
JWOET20	19.2	51	45	72	70
JWOET21	22.1	51	45	72	70
JWOET22	25.4	51	45	72	70
JWOET23	30.2	51	45	72	70
JWOET24	25.4	51	38	90	85
JWOET25	30.2	51	38	90	85
JWOET26	19.2	51	50	85	70
JWOET27	25.4	51	50	85	70
JWOET28	25.4	51	50	83	65
JWOET29	30.2	42	50	83	65
JWOET30	30.2	55	50	83	65
JWOET31	35.2	35	50	83	65
JWOET32	35.2	55	50	83	65
JWOET33	30.2	55	50	92	65
JWOET34	30.2	44	50	92	65
JWOET35	35.2	35	50	92	65

Code	A	B	C	D	E
JWOEL01	16.2	20	30	46	60
JWOEL02	19.2	44	50	52	50
JWOEL03	20.2	44	50	52	50
JWOEL04	19.2	35	50	65	43
JWOEL05	22.1	35	50	65	43
JWOEL06	22.1	35	70	76	50
JWOEL07	25.4	35	70	76	50
JWOEL08	28.2	35	70	76	50
JWOEL09	22.1	35	70	83	55
JWOEL10	25.4	35	70	83	55
JWOEL11	28.2	35	70	83	55
JWOEL12	28.2	45	70	83	55
JWOEL13	25.4	35	70	80	80
JWOEL14	28.2	35	70	80	80
JWOEL15	28.2	45	70	80	80
JWOEL16	22.1	45	70	80	65
JWOEL17	25.4	45	70	80	65
JWOEL18	28.4	45	70	80	65
JWOEL19	30.2	45	70	80	65
JWOEL20	28.2	45	70	96	65
JWOEL21	34.4	45	70	96	65
JWOEL22	35.2	45	70	96	65
JWOEL23	37.4	45	70	96	65
JWOEL24	19.2	35	56	67	50
JWOEL25	22.1	35	56	67	50
JWOEL26	25.4	35	56	67	50
JWOEL27	22.1	35	70	67	75
JWOEL28	25.1	45	90	80	80
JWOEL29	28.2	45	90	106	90
JWOEL30	30.2	45	90	106	90
JWOEL31	34.4	45	90	106	90
JWOEL32	35.2	45	90	106	90
JWOEL33	37.4	45	90	106	90
JWOEL34	38.4	45	90	106	90
JWOEL35	28.4	45	70	80	110
