Top Link Ends (UNC)

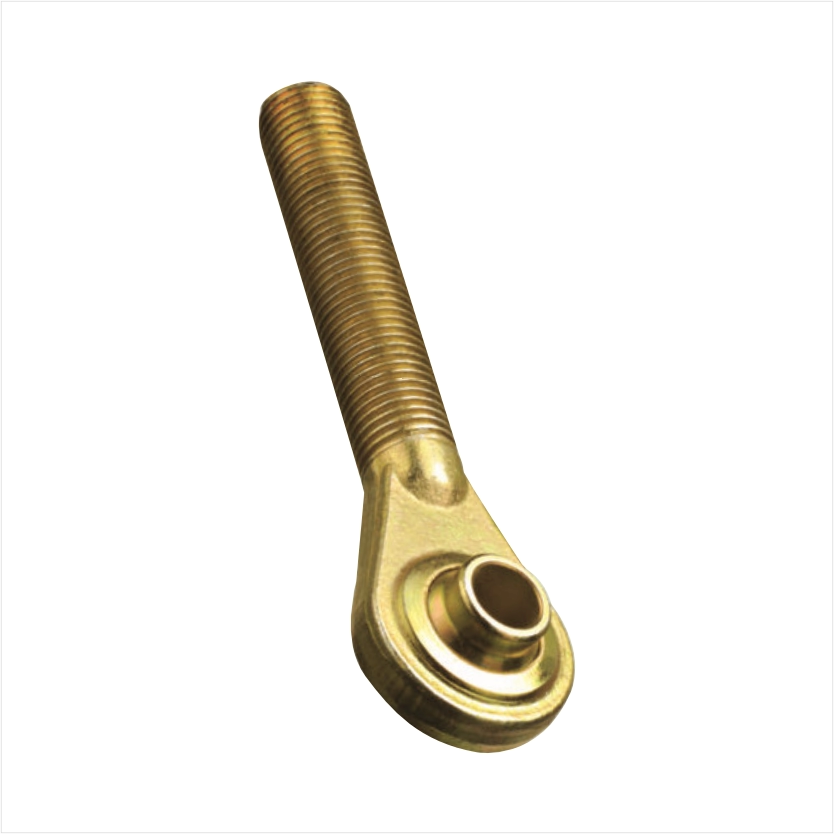

Top Link Ends (UNC) - Image 2

Top Link Ends (UNC)

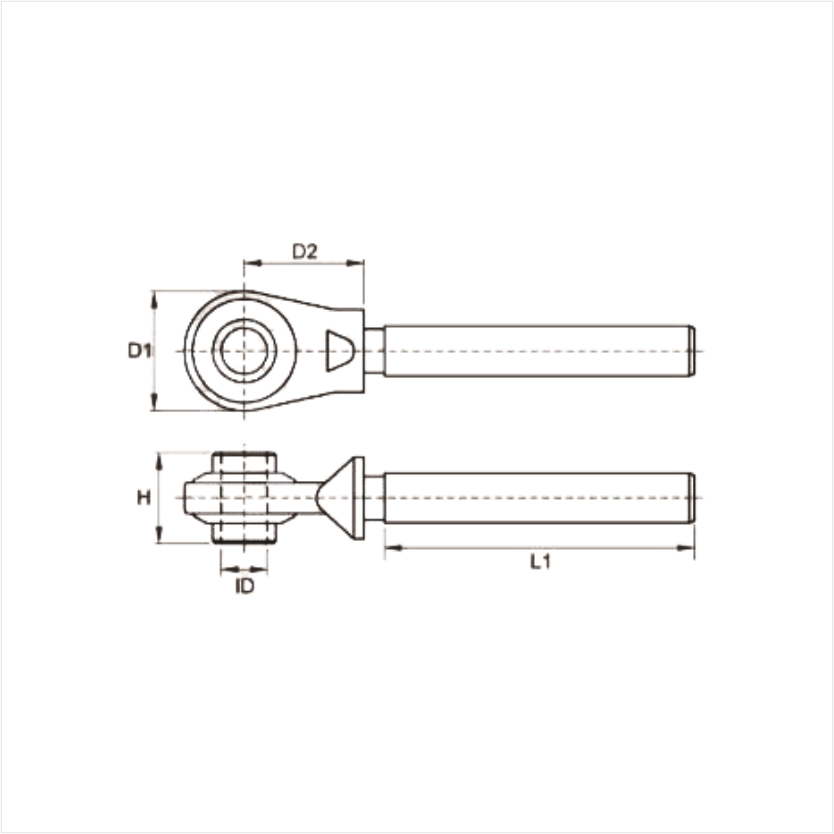

Code	CAT	I.D.	Thread	L1	D1	D2	H
JTLER00	0	16	3/4 UNCR	105	47	30	25.4
JTLEL00	0	16	3/4 UNCL	105	47	30	25.4
JTLER11	1	19	1 1/8 UNCR	155	58	53	44
JTLEL11	1	19	1 1/8 UNCL	155	58	53	44
JTLER20	2	25.4	1 1/8 UNCR	190	66	58	51
JTLEL20	2	25.4	1 1/8 UNCL	190	66	58	51
JTLER22	2	25.4	1 1/8 UNCR	180	76	66	51
JTLEL22	2	25.4	1 1/8 UNCL	180	76	66	51

Code	CAT	I.D.	Thread	L1	D1	D2	H
JTLE27R10	2	25.4	M27 x 3R	190	56	66	51
JTLE27L10	2	25.4	M27 x 3L	190	56	66	51
JTLE27R11	2	25.4	M27 x 3R	190	56	66	42
JTLE27L11	2	25.4	M27 x 3L	190	56	66	42
JTLE30R12	2	25.4	M30 x 3.5R	75	56	75	51
JTLE30L12	2	25.4	M30 x 3.5L	75	56	75	51

Top Link End (MM)

Code	CAT	I.D.	Thread	L1	D1	D2	H
JTLE22R01	1	19	M22 x 2.5R	95	50	58	44
JTLE22L01	1	19	M22 x 2.5L	95	50	58	44
JTLE22R02	1	19	M22 x 2.5R	120	50	58	44
JTLE22L02	1	19	M22 x 2.5L	120	50	58	44
JTLE24R03	1	19	M24 x 3R	60	50	58	44
JTLE24L03	1	19	M24 x 3L	60	50	58	44
JTLE24R04	1	19	M24 x 3R	85	50	58	44
JTLE24L04	1	19	M24 x 3L	85	50	58	44
JTLE24R05	1	19	M24 x 3R	120	50	58	44
JTLE24L05	1	19	M24 x 3L	120	50	58	44
JTLE24R06	1	19	M24 x 2.5R	120	50	58	44
JTLE24L06	1	19	M24 x 2.5L	120	50	58	44
JTLE27R07	1	19	M27 x 3R	120	50	58	44
JTLE27L07	1	19	M27 x 3L	120	50	58	44
JTLE27R08	1	19	M27 x 3R	155	50	58	44
JTLE27L08	1	19	M27 x 3L	155	50	58	44
JTLE27R09	2	25.4	M27 x 3R	135	56	66	51
JTLE27L09	2	25.4	M27 x 3L	135	56	66	51

Code	CAT	I.D.	Thread	L1	D1	D2	H
JTLE30L14	1	19	M30 x 3.5L	120	60	62	44
JTLE30R14	1	19	M30 x 3.5R	120	60	62	44
JTLE30L15	2	25.4	M30 x 3.5L	120	56	75	51
JTLE30R15	2	25.4	M30 x 3.5R	120	56	75	51
JTLE30L16	1	19	M30 x 3.5L	170	60	63	44
JTLE30R16	1	19	M30 x 3.5R	170	60	63	44
JTLE30L17	2	25.4	M30 x 3.5L	180	56	75	51
JTLE30R17	2	25.4	M30 x 3.5R	180	56	75	51
JTLE30L18	1	19	M30 x 3L	170	60	62	44
JTLE30R18	1	19	M30 x 3R	170	60	62	44
JTLE30L19	2	25.4	M30 x 3L	180	56	75	51
JTLE30R19	2	25.4	M30 x 3R	180	56	75	51
