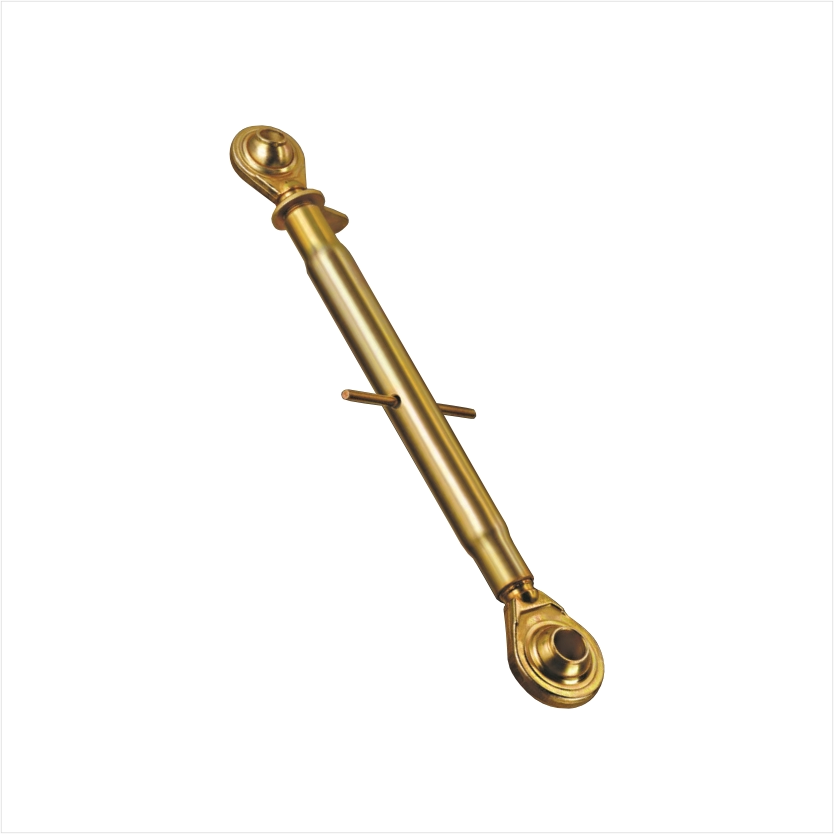

Top Link Assemblies

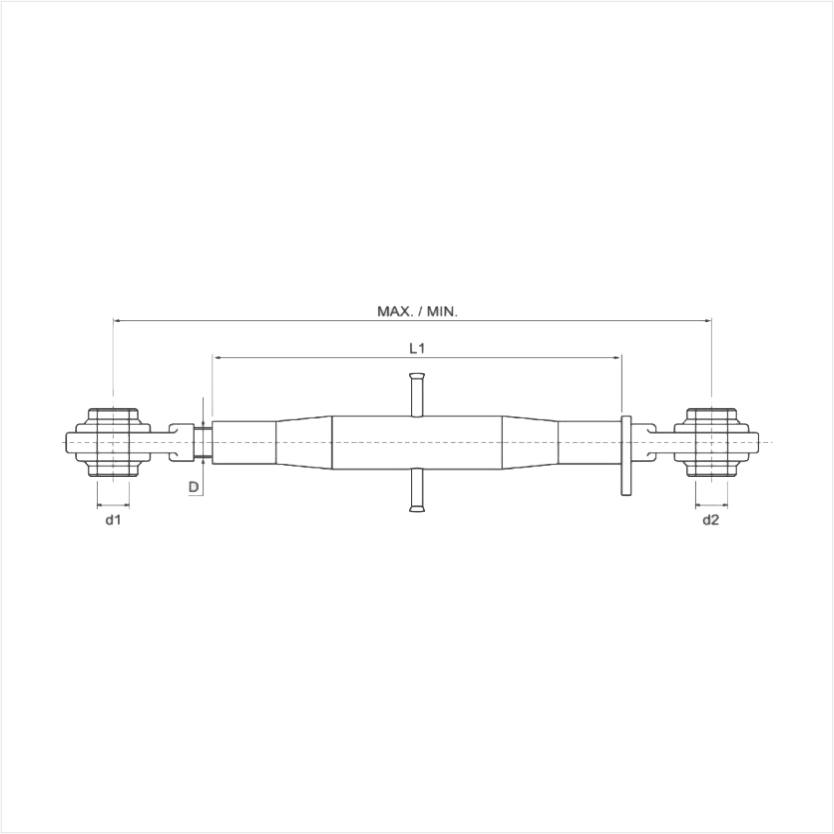

Code	CAT d1 – d2	Pipe L1	Thread D	Min.	Max.
JTL190190	0-0	7 1/2″	3/4 UNC	11″	16 3/8″
JTL1900248	0-0	9 3/4″	3/4 UNC	13 3/8″	18 5/8″
JTL281178	1-1	7″	1 1/8 UNC	11 5/8″	14 3/4″
JTL2812178	1-2	7″	1 1/8 UNC	11 3/4″	15″
JTL2822178	2-2	7″	1 1/8 UNC	12″	15 1/8″
JTL2811228	1-1	9″	1 1/8 UNC	13 5/8″	18 3/4″
JTL2812228	1-2	9″	1 1/8 UNC	13 3/4″	19″
JTL2822228	2-2	9″	1 1/8 UNC	14″	19 1/4″
JTL2811260	1-1	11 1/4″	1 1/8 UNC	16″	24″
JTL2812260	1-2	11 1/4″	1 1/8 UNC	16 3/8″	24 1/4″
JTL2822260	2-2	11 1/4″	1 1/8 UNC	16 1/2″	24 3/8″
JTL2811330	1-1	13″	1 1/8 UNC	17 1/2″	26 3/4″
JTL2812330	1-2	13″	1 1/8 UNC	17 3/4″	27″
JTL2822330	2-2	13″	1 1/8 UNC	18 1/8″	27 1/8″
JTL2811368	1-1	14 1/2″	1 1/8 UNC	19″	27″
JTL2812368	1-2	14 1/2″	1 1/8 UNC	19 1/2″	27 1/8″
JTL2822368	2-2	14 1/2″	1 1/8 UNC	20″	31 1/2″
JTL2811406	1-1	16″	1 1/8 UNC	20 1/2″	28″
JTL2812406	1-2	16″	1 1/8 UNC	20 3/4″	28 3/8″
JTL2822406	2-2	16″	1 1/8 UNC	21″	32 1/2″
JTL2811438	1-1	17 1/4″	1 1/8 UNC	21 5/8″	29 3/8″
JTL2812438	1-2	17 1/4″	1 1/8 UNC	22″	29 1/2″
JTL2822438	2-2	17 1/4″	1 1/8 UNC	22 1/4″	33 7/8″
JTL2811508	1-1	20″	1 1/8 UNC	24 3/8″	32″
JTL2812508	1-2	20″	1 1/8 UNC	24 3/4″	32 1/4″
JTL2822508	2-2	20″	1 1/8 UNC	25″	36 3/8″
JTL2811610	1-1	24″	1 1/8 UNC	28 1/2″	36″
JTL2812610	1-2	24″	1 1/8 UNC	28 3/4″	36 1/4″
JTL2822610	2-2	24″	1 1/8 UNC	28 7/8″	40 1/2″
JTL3222380	2-2	15″	1 1/4 UNC	20″	30 7/8″
JTL3222482	2-2	19″	1 1/4 UNC	24″	35 1/4″
