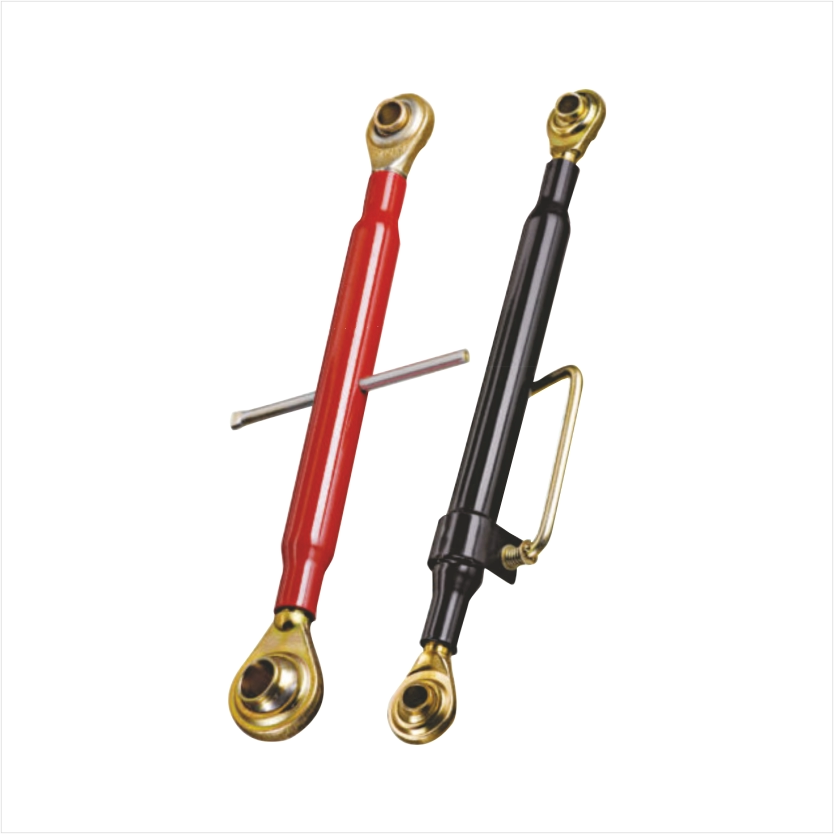

Top Link Assemblies Thread M (30*3)

Code	CAT d1 – d2	Pipe L1	Thread D	Min.	Max.
JTL3022330H	2-2	330	M30 x 3	460	700
JTL3022370H	2-2	370	M30 x 3	500	740
JTL3022400H	2-2	400	M30 x 3	530	770
JTL3022450H	2-2	450	M30 x 3	580	820
JTL3022500H	2-2	500	M30 x 3	630	870
JTL3022600H	2-2	600	M30 x 3	730	970

Code	CAT d1 – d2	Pipe L1	Thread D	Min.	Max.
JTL3011370	1-1	370	M30 x 3	500	720
JTL3012370	1-2	370	M30 x 3	500	730
JTL3022370	2-2	370	M30 x 3	500	740
JTL3011400	1-1	400	M30 x 3	530	750
JTL3012400	1-2	400	M30 x 3	530	760
JTL3022400	2-2	400	M30 x 3	530	770
JTL3011450	1-1	450	M30 x 3	580	800
JTL3012450	1-2	450	M30 x 3	580	810
JTL3022450	2-2	450	M30 x 3	580	820
JTL3022460	2-2	460	M30 x 3	590	830
JTL3011500	1-1	500	M30 x 3	630	850
JTL3012500	1-2	500	M30 x 3	630	860
JTL3022500	2-2	500	M30 x 3	630	880
JTL3011520	2-2	520	M30 x 3	650	900
JTL3022550	2-2	550	M30 x 3	650	930
JTL3022560	2-2	560	M30 x 3	690	940
JTL3022600	2-2	600	M30 x 3	730	980
JTL3022650	2-2	650	M30 x 3	780	1030
JTL3022700	2-2	700	M30 x 3	830	1080
JTL3022720	2-2	720	M30 x 3	880	1100
