Eye End

Eye End
Eye End - Image 2
Eye End - Image 3
Eye End - Image 4

Eye End

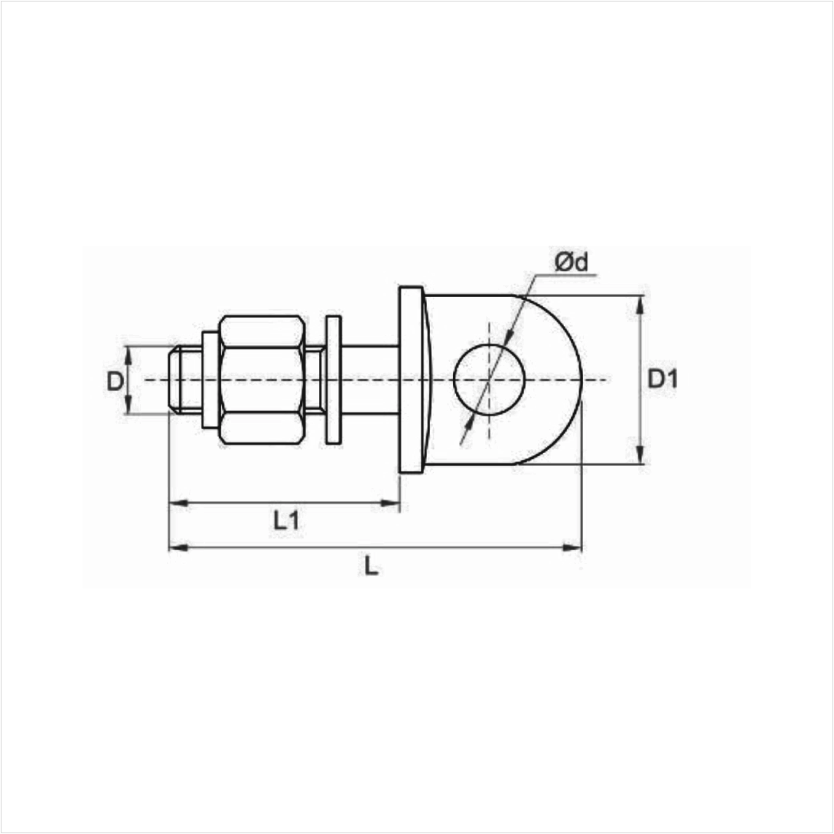

Code D L Ød D1 L1
JEE16 16 x 1.5 80 15 36 43
JEE18 18 x 2.5 80 15 36 43
JEE20 20 x 2.5 100 18 45 56
JEE24 24 x 2 125 24 53 65

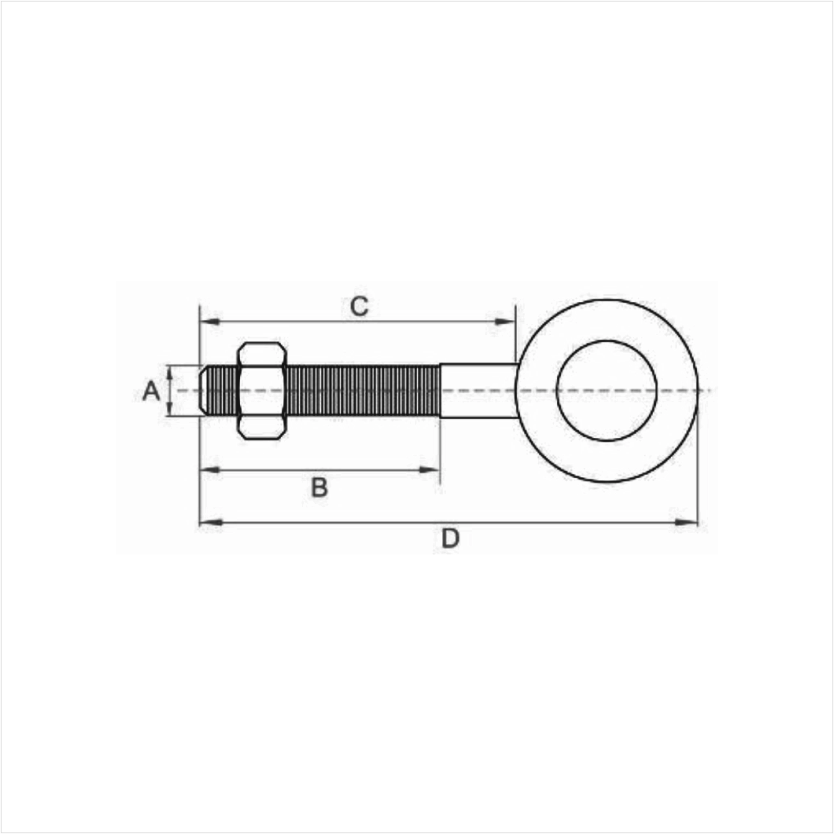

Code A B C D E
JEE101 1/4″ 1-1/2″ 2″ 3″ 1/2″
JEE102 5/16″ 1-1/2″ 2-1/4″ 3-1/2″ 5/8″
JEE103 3/8″ 1-1/2″ 2-1/2″ 4″ 3/4″
JEE104 1/2″ 1-1/2″ 3-1/4″ 5-1/4″ 1″
JEE105 6/8″ 1-3/4″ 4″ 6-1/2″ 1-1/4″
JEE106 1/4″ 2-1/2″ 4″ 5″ 1/2″
JEE107 5/16″ 2-1/2″ 4-1/4″ 5-1/2″ 5/8″
JEE108 3/8″ 2-1/2″ 6″ 7-1/2″ 3/4″
JEE109 1/2″ 3″ 6″ 7-3/4″ 1″
