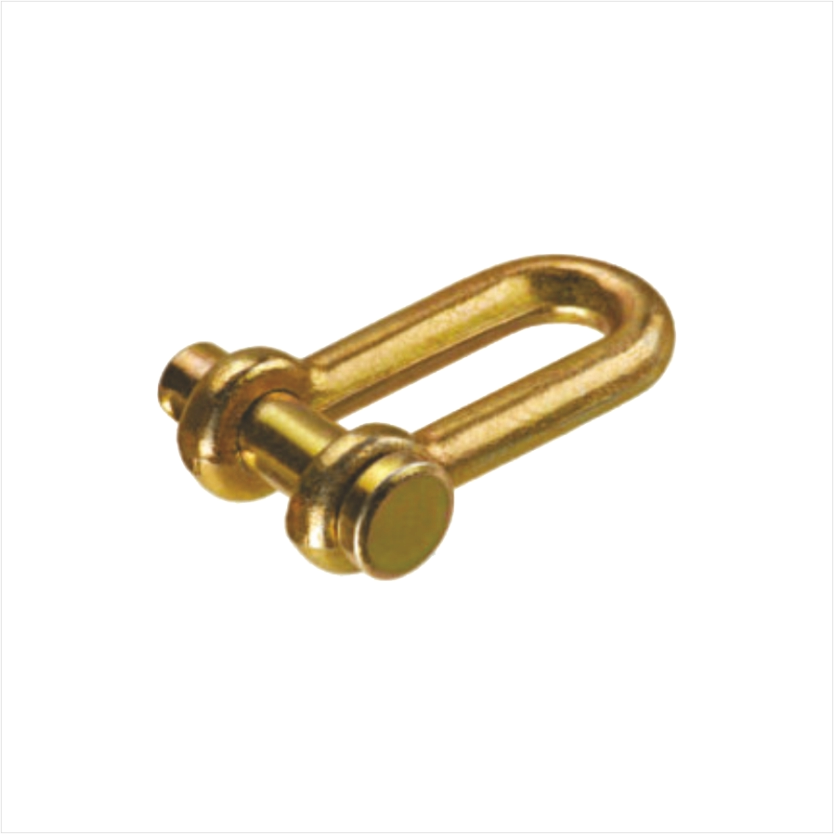

Clevises (Utility)

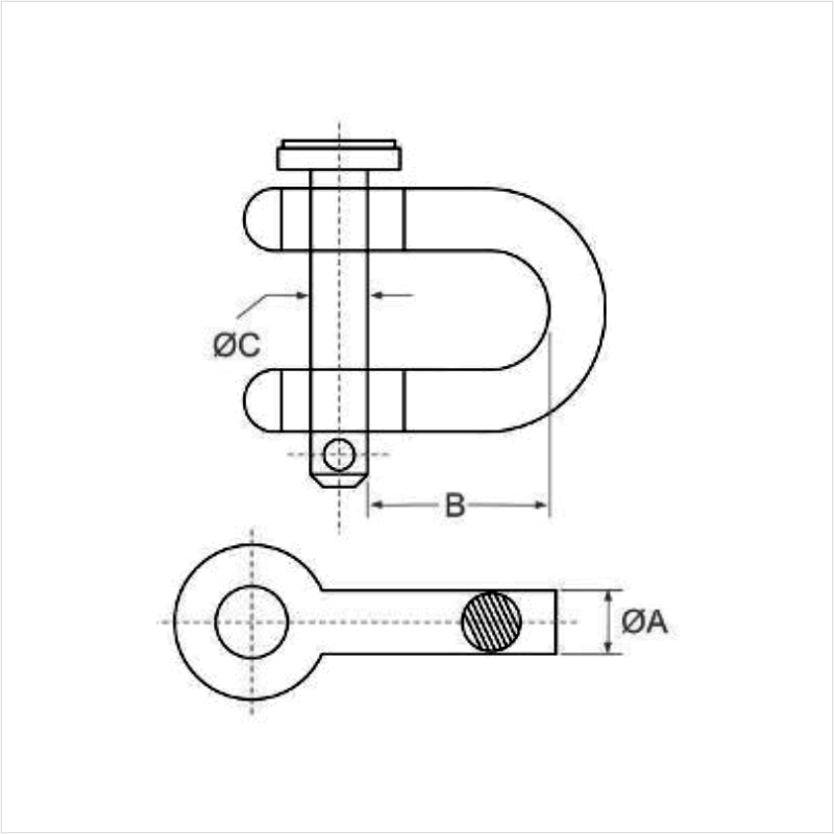

Code	Body Dia ØA (mm)	Usable Length B (mm)	Pin Dia ØC (mm)	Thread Dia ØD (mm)	Weight (lbs.)
JCS-01	6.35	25.87	7.93	5/16″ UNC	0.14
JCS-02	7.93	31.75	9.52	3/8″ UNC	0.22
JCS-03	9.52	36.51	11.11	7/16″ UNC	0.31
JCS-04	11.11	42.85	12.7	1/2″ UNC	0.53
JCS-05	12.7	49.21	15.87	5/8″ UNC	0.75
JCS-06	15.87	63.5	19.05	3/4″ UNC	1.1
JCS-07	19.05	76.2	22.22	7/8″ UNC	2.75
JCS-08	22.22	82.55	25.4	1″ UNC	3.58
JCS-09	25.4	95	28.57	1-1/8″ UNC	5.4
JCS-10	28.57	107.95	31.75	1-1/4″ UNC	7
JCS-11	13.75	114.3	34.92	1-3/8″ UNC	9.5
